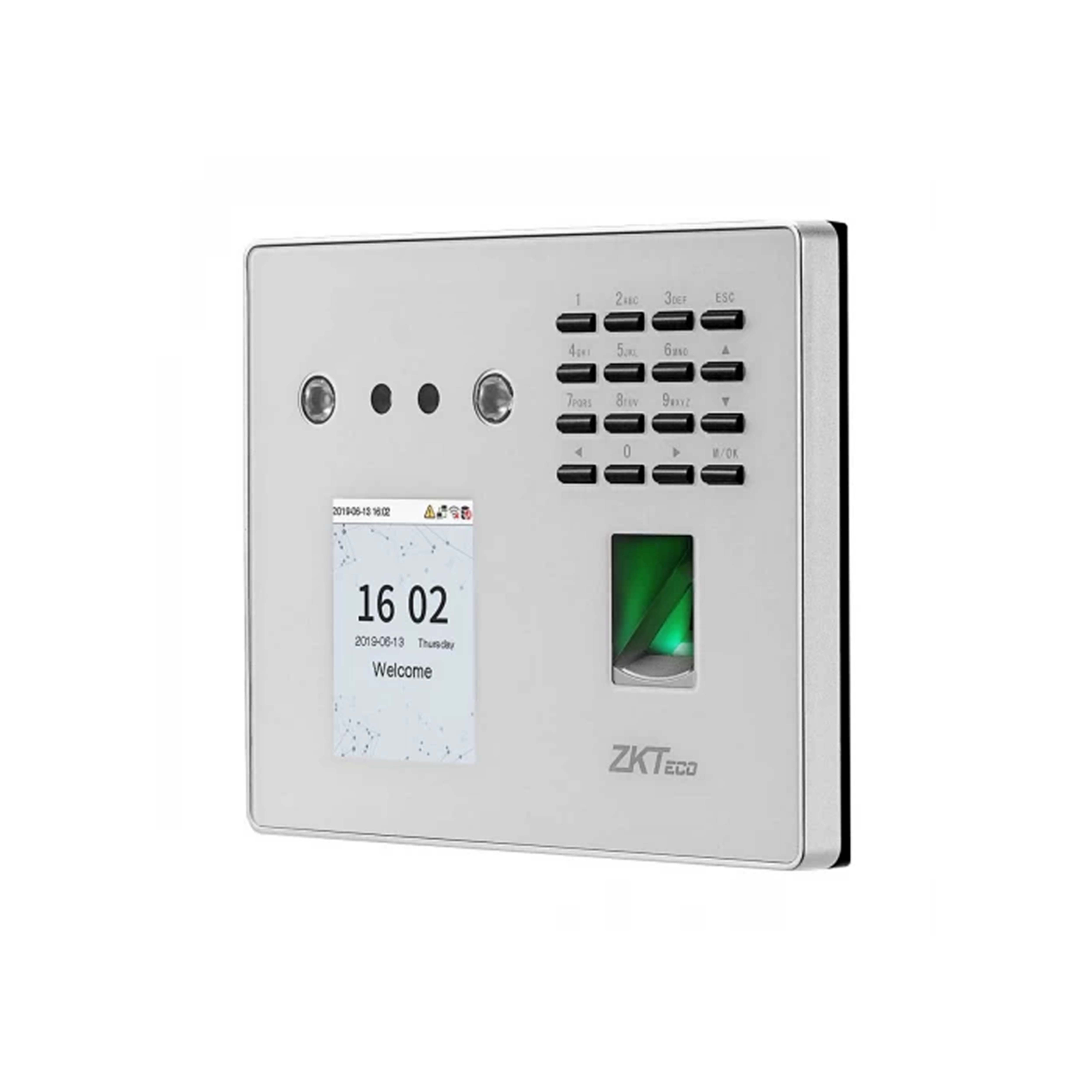

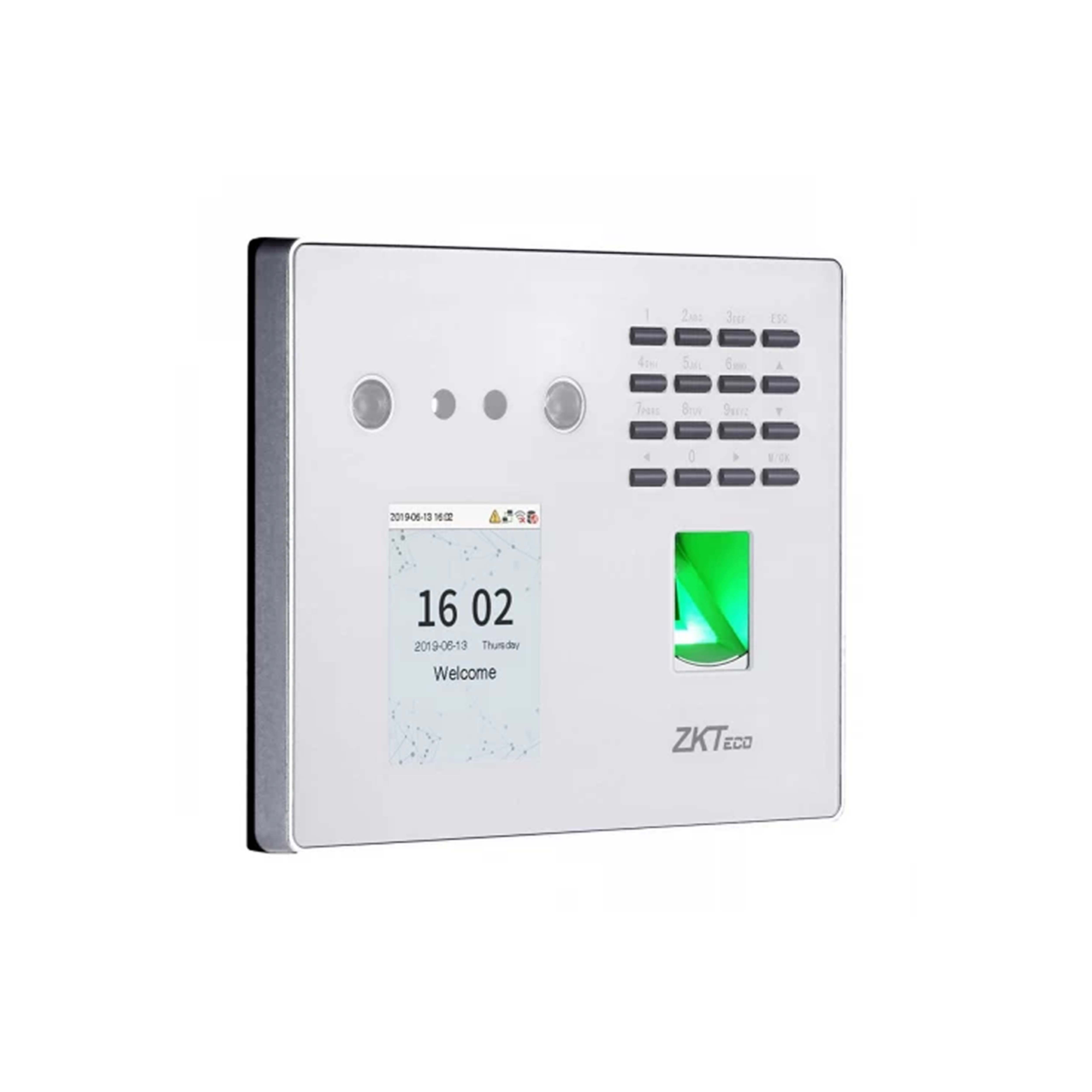

MB560-VL is a multi-biometric identification terminal featuring ZKTeco’s innovative Visible Light Facial Recognition technology. With the latest algorithm and facial recognition related technologies, the device can perform recognition of a target in a distance from 0.3m to 2m and will function automatically when it detects a face in the detection distance so as to deliver better recognition quality in terms of speed and accuracy than the previous near-infrared facial recognition terminal. With the applied Deep Learning algorithm, pose angle tolerance and anti-spoofing have been greatly enhanced against dynamic environment and various spoofing attacks. Apart from all these, together with the world's cutting-edge 3D Neuron Fingerprint Algorithm and comprehensive support in mainstream card modules and additional support in WiFi, MB560-VL must be a best fit in various working environments satisfying different customer’s needs.
- Display2.8-inch TFT Screen
- Face Capacity3,000 (Optional:5,000)
- Fingerprint Capacity3,000 (Optional:5,000)
- Card Capacity10,000 (Optional)
- Transaction Capacity100,000 (Optional:200,000)
- CommunicationTCP/IP, WiFi (Optional), USB Host
- Standard FunctionsADMS, Work Code, DST, Self-service Query, Automatic Status Switch, T9 Input, Photo ID, Masks Detection, Camera, 14-digit User ID, Multiple Verify Modes, Schedule Bell
- Hardware900MHZ Dual Core CPU;
Memory 512MB RAM / 8G ROM;
2MP WDR Low Light Camera;
Adjustable LED Supplement Lighting; - Operation SystemLinux
- Interfaces of Access Control3rd Party Electric Lock, Door Sensor, Exit Button
- Optional Functions125KHz ID Card (EM) / 13.56MHz IC Card
- Biometrics AlgorithmsZKFace V5.8 & ZKFinger V10.0
- Facial Recognition Speed≤1s
- Facial Recongntion Speed≤1s
- Power Supply12V 1.5A
- Operating Humidity20% - 80%
- Working Humidity20% - 80%
- Operating Temperature0 °C - 45 °C
- Working Temperature0 °C - 45 °C
- Dimension170 * 138 * 38.55 (mm)(W*H*D)
- Dimensions (W*H*D)170 * 138 * 38.55 (mm)
- Supported SoftwareZKBio Time
- Supported SoftwaresZKBio Time
- Access Control Interface3rd Party Electric Lock, Door Sensor, Exit Button
