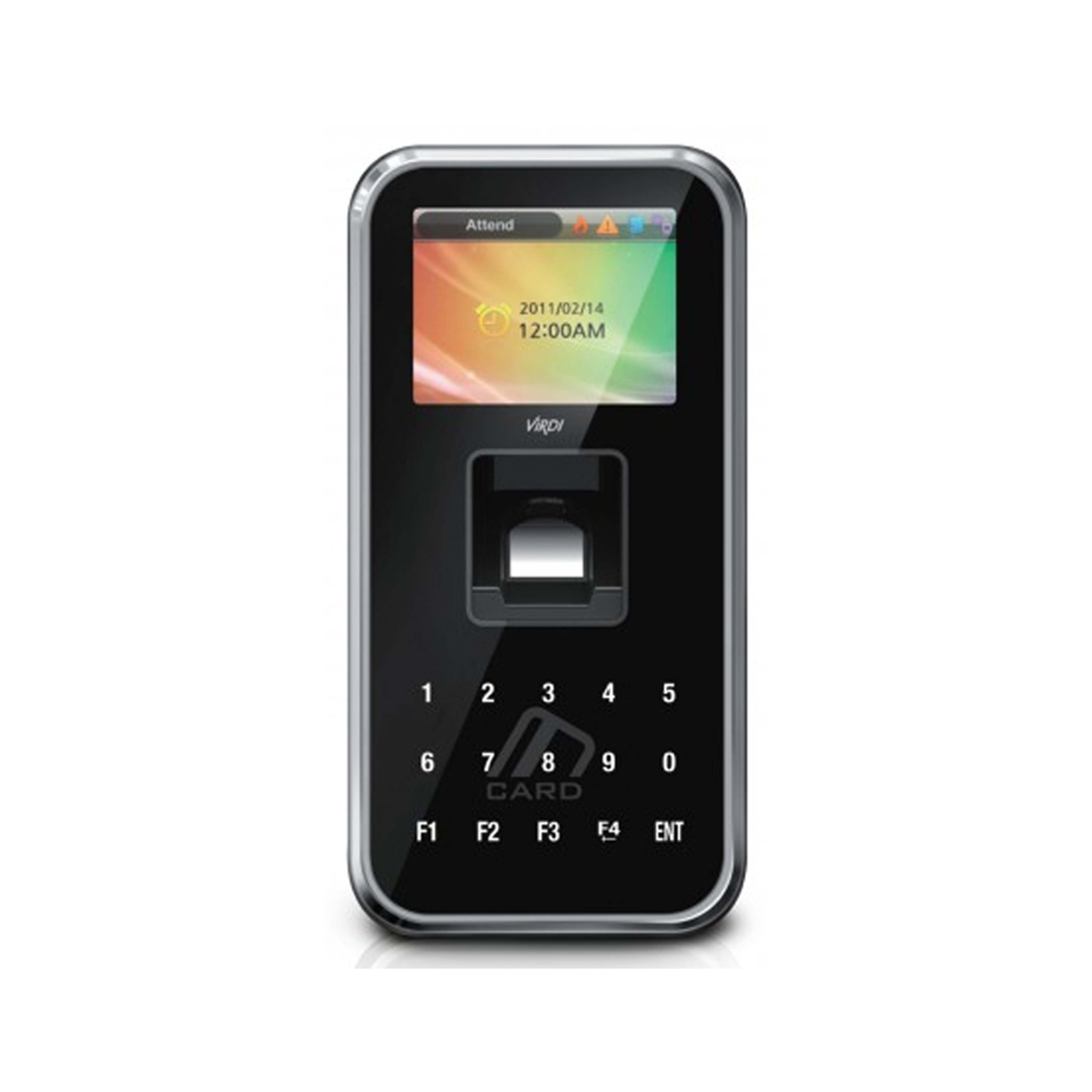

Virdi AC 5000 Plus PoE Biometric Access Control System

HomeACCESS CONTROLVirdi AC 5000 Plus PoE Biometric Access Control System

24 of 58

Specification

Authentication Method				Biometric
Dust/ Water Resistance				X
Memory	Max Users	card	(1:1) / (1:N)	20,000
		Fingerprint (Base on one finger enrollment per user)	1:1	20,000
			1:N	15,000
		Face (Base on five Face enrollment per user)	1:1	X
			1:N	X
		Iris (Base on 2 eyes (L/R) enrollment per user)	1:1	X
			1:N	X
	Templates	Fingerprint	1:1	40,000
			1:N	30,000
			MAX Templates per Finger	2
			MAX Finger per User	10
		Face	1:1	X
			1:N	X
			MAX Templates per Finger	X
		Iris	1:1	X
			1:N	X
			MAX Templates per Eyes	X
			MAX Templates per User	X
	Logs			64,000
	Images			X
Communication	with server			TCP/IP
	other			X
	Wireless LAN(Wi-Fi)			X
	Wiegand OUT			O
	RS232			O
	RS485			OSDP
	Wiegand IN			O
Display	LCD			2.8″Color
	Backlight			0
Embedded Camera				X
Card	125khz-EM			O
	HID Prox			O
	HID iclass			O
	13.56MHz Smart Card			O
Keypad				O
Function keys				10
Door Phone				X
FP Sensor (Platen Area)				16 X 20 mm
Resolution				500dpi
Dimension	(W) X (H) X (D) mm			88 X 175 X 43.5
FRR /FAR				0.1% / 0.0001%
Operating Temperature				-20 ~ 60℃
Opertating Software (Server solution)				UNIS
