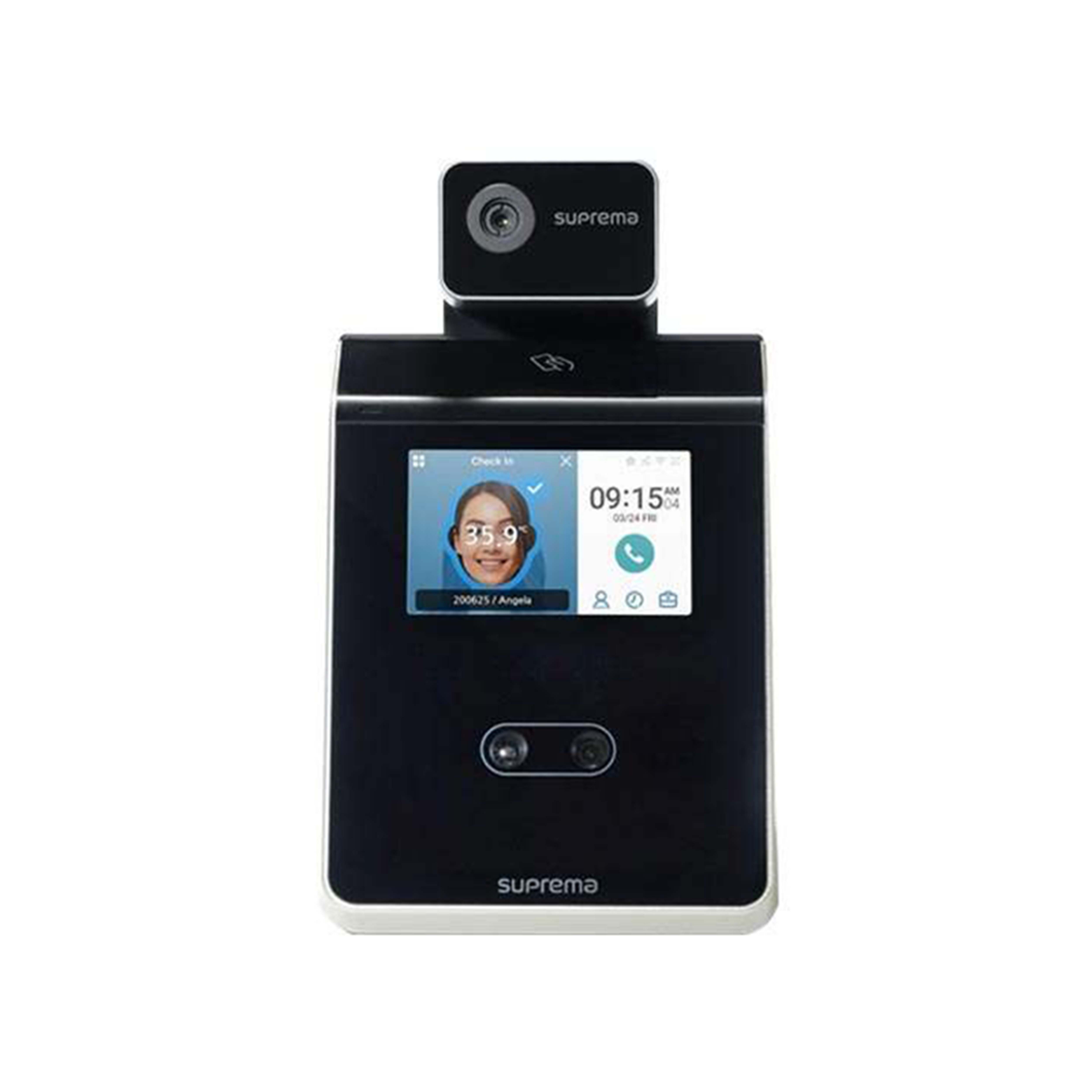

Suprema Thermal Camera can be used with Suprema facial authentication terminals to detect users with a higher body temperature.
Disclaimer: Suprema products cannot be used to diagnose any medical condition. Suprema thermal cameras can only identify individuals with skin temperature higher than a preset figure but should not be solely or primarily relied upon to diagnose or exclude a diagnosis of COVID-19, or any other illness.
Easy Deployment
Specification
| Part Code | TCM10-FSF2 | TCM10-FS2 |
|---|---|---|
| Compatible facial authentication terminal | FaceStation F2 | FaceStation 2 |
| Max. Resolution | 120 x 160 (19,200 pixel) | |
| Frame Rate | 8 fps | |
| NETD (Noise Equivalent Temperature Difference) | ≤ 50 mK (@25°C, F# = 1.0) | |
| Field of View | 37.2° × 50°(H × V) | |
| Temperature Range | 1°C-45°C | |
| Temperature Accuracy* | ≤±0.5°C (0.9°F)*/±0.3°C (0.5°F)** | |
| Temperature Distance | 50 cm-130 cm | 40 cm-80 cm |
| Interface | USB | |
| Operating Temperature | 0°C to 50°C | |
| Dimensions | Camera: 77 mm x 46 mm x 22.2 mm (3.03" x 1.81" x 0.87") Camera with Bracket: 139.84 mm x 163.8 mm x 22.8 mm (5.51" x 6.45" x 0.90") - TCM10-FSF2-ODB: 109.89 mm x 315.69 mm x 13 mm (4.33" x 12.43" x 0.51") - TCM10-FSF2-DB: 109.89 mm x 283.39 mm x 13 mm (4.33" x 11.16" x 0.51") | Camera: 77 mm x 46 mm x 22.2 mm (3.03" x 1.81" x 0.87") Camera with Bracket: 139.84 mm x 163.8 mm x 22.8 mm (5.51" x 6.45" x 0.90") |
- *For ±0.5°C accuracy, use the device:
-
- - In recommended ambient temperature (10°C to 35°C or 50°F to 95°F)
- - 90 minutes after turning on for self-calibration
- **According to KOLAS (Korea Laboratory Accreditation Scheme) calibration certificate
