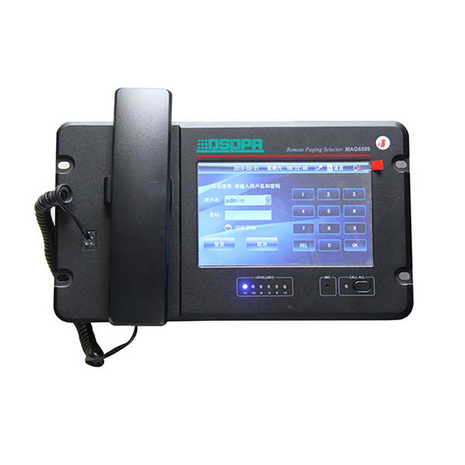

MAG6589 Series wall mount intelligent paging station is a network high fidelity paging station based on TCP/IP Transfer protocol, which can be attached to anywhere that the network can reach. It has the characteristics of high stability of traditional paging station, stable and reliable operation and low failure rate. Signal all-digital transmission design, intelligent control as the core. 7-inch real color LCD screen/touch screen control, graphics and image of the user interface is more human-friendly. With auxiliary input and output channels, local audio source extension and amplifier expansion can be realized. Built-in player which is independent developed by DSPPA, the implementation of host program local monitoring.
Features
● IP network remote control & paging station● Support 10M/100M self-adaptive TCP/IP protocol
● 7" true color LCD touch screen display & control
● Built-in 3W speaker for monitor and talk-back function
● Can play music from the console to one zone/all zones
● Support zone paging and group paging
Specification | Parameters |
Rated output voltage | 1.0±0.2V |
Mic input sensitivity (output 1V) | 50±10mV |
Mic Distortion (1KHZ/1V) | MIC：≤0.5% |
Mic gain limit effective frequency range (±3DB) | 200-12000Hz |
MicSNR (30k low-pass) | ≥65dB |
MICAGC startingcontrol valve value | 600±50mV |
AUX input sensitivity (output 1V) | 300±50mV |
AUX distortion（1kHz/1V） | AUX≤0.2% |
AUX SNR(30k low-pass) | ≥70dB |
AUXgain limit effective frequency range (±3DB) | 35-20000Hz |
Aux dynamicrange | ≥26dB |
Monitor (intercom voice)effective frequency range of gain limit (± 3dB) | 60-7000Hz |
MonitorSNR (intercom voice) | ≥65dB |
Working voltagerange | AC180-240V |
Standby power consumption | 14.5W |
Power | AC220V（±10%）/50Hz |
Power consumption | 22W |
Packingdimension（mm） | （L×W×H）485×255×170 |
Device dimension（mm） | （L×W×H）315×178×88 |
Gross weight | 3kg |
Net weight | 2kg |
