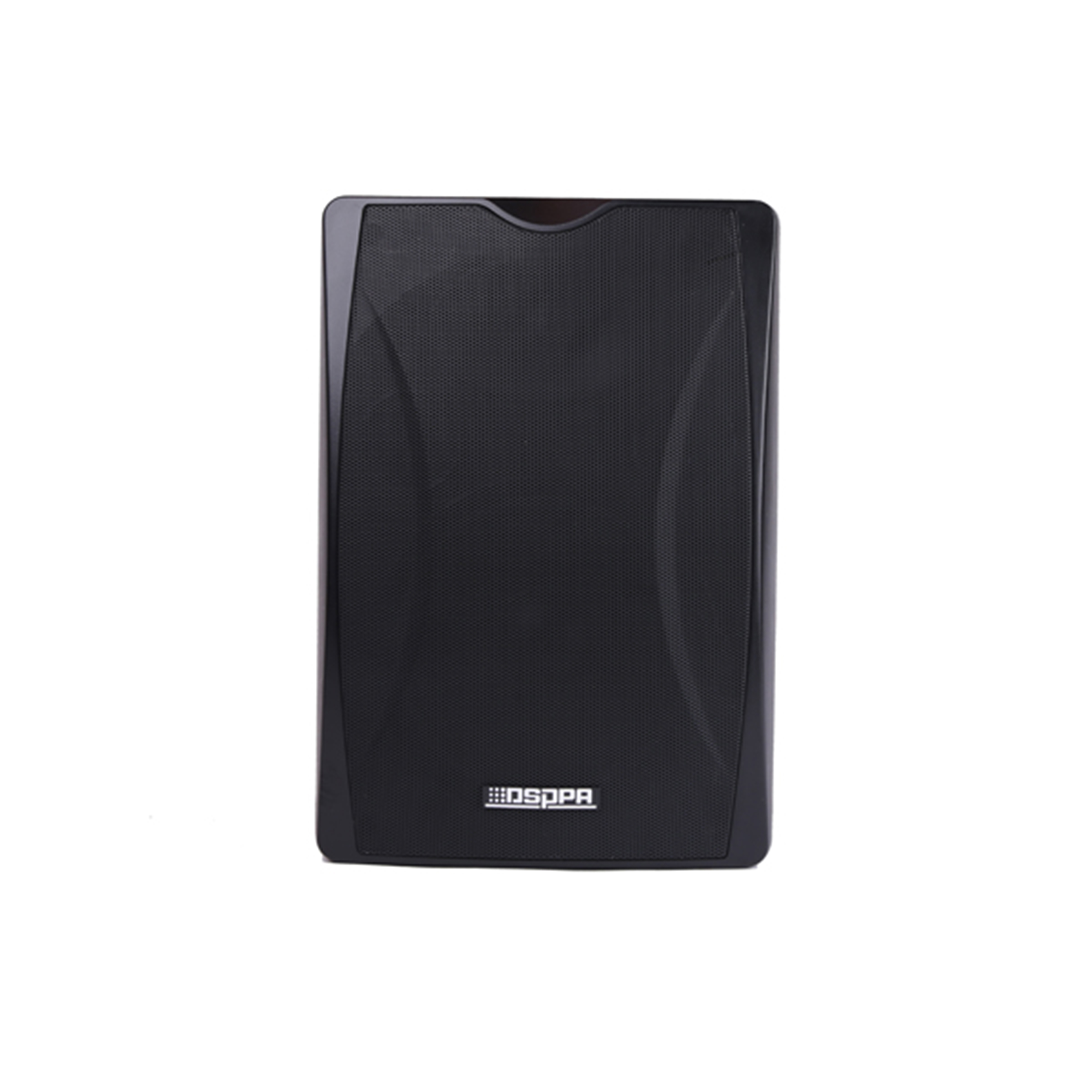

MAG6463B is a network full digital signal processor Hi-Fi speaker based on TCP/IP protocol. With dual network interface design, it can be connect to anywhere the network reaches. Under intelligent control of the system center, this terminal serves to output the long distance audio data flow. Built in MP3 player, USB port, and SD slot, for local program playing. With 1 aux input to connect with other audio source equipments; 1 aux audio output for connection with other amplifiers for power extension; and 1 MIC input for local Paging.
Model No. | MAG6463B | |
AUX Input | Input Resistance | >10kΩ |
Input Sensitivity | 1000 mV | |
Freq Resp. | 50Hz-20kHz | |
Distortion | ≤0.1% | |
SNR | ≥80 dB | |
MIC Input | Input Resistance | >600Ω |
Freq Resp. | 50Hz-20kHz | |
Distortion | ≤1% | |
SNR | ≥75 dB | |
AUX Output | Output Resistance | <50Ω |
Output Sensitivity | 1000mV | |
Freq Resp. | 50Hz-20kHz | |
Distortion | ≤0.1% | |
SNR | ≥75 dB | |
Amplifier Output | Power | 25W/4Ω |
Freq Resp. | 50Hz-20kHz | |
Distortion | ≤0．1% | |
SNR | ≥80dB | |
Built-in Speaker | Max SPL | ≥100dB |
Power | 25W/4Ω | |
Freq Resp. | 50Hz-20kHz | |
Distortion | ≤0．1% | |
SNR | ≥80dB | |

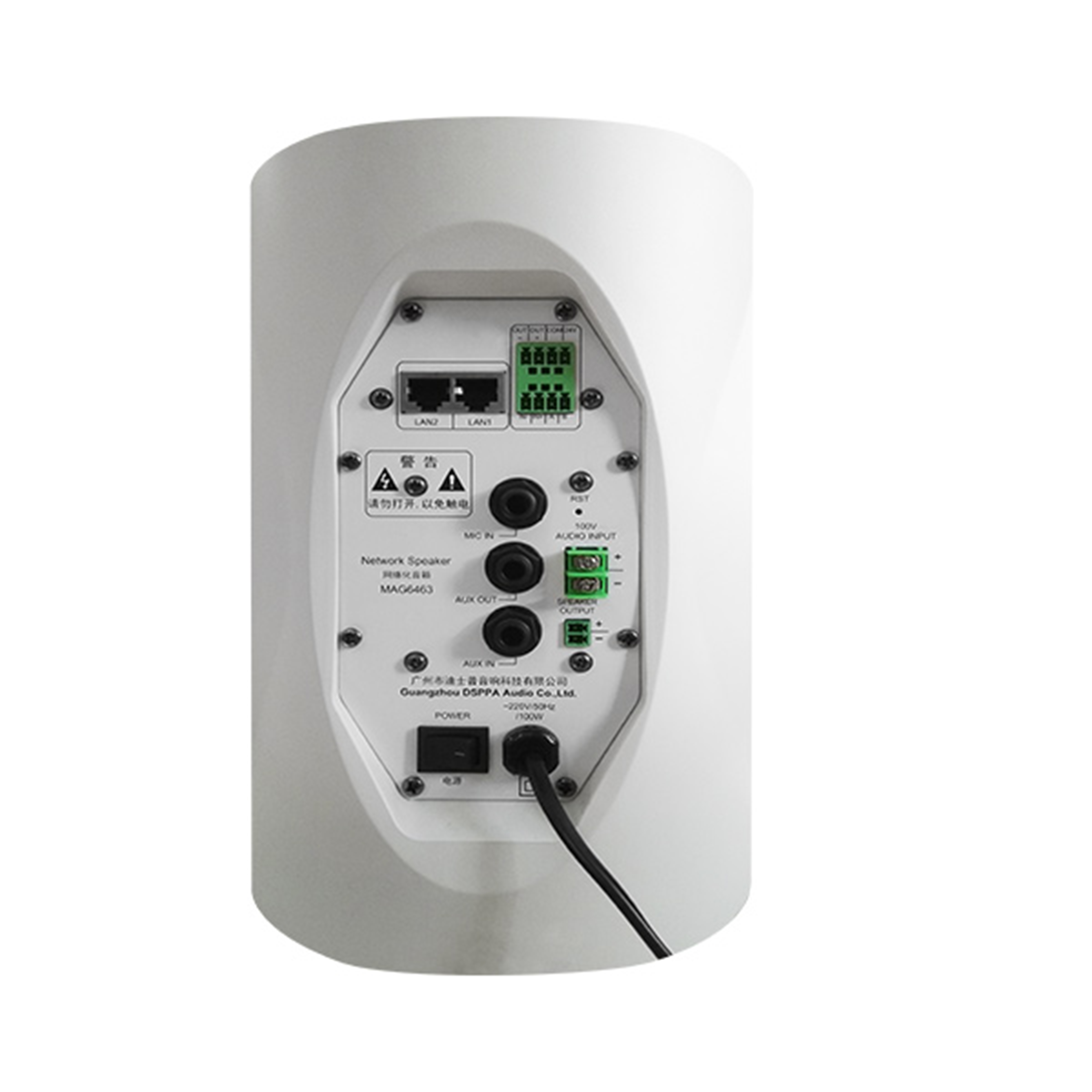

Interface | Dual Ethernet Interface | 标准5类(CAT-5) |
AUX Input | RCA | |
AUX Output | RCA | |
MIC Input | 6.3 Socket | |
Aux Speaker Output | 3.81MM | |
Digital Audio Parameter | Decode Format | Support PCM\MP3 |
Sampling Frequency | 8k-48kHZ | |
Other | Power Supply | 80-250V/50Hz |
Over-current, Over-heat, Over-voltage Protection | Yes | |
