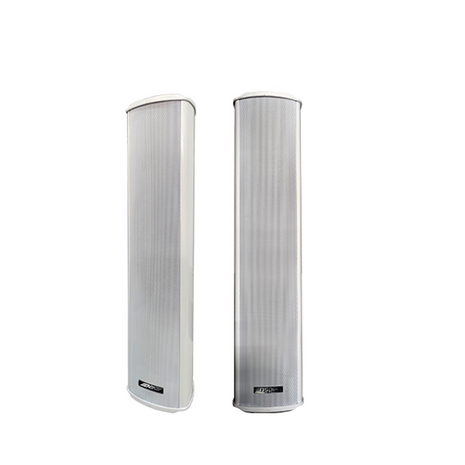

MAG6369 Network Outdoor Waterproof Column Speaker is a network all-digital analog-to-digital conversion signal processor with a high-fidelity speaker based on TCP/IP transmission protocol. The modern network playback terminal, with the integrated design of the processor and the column speaker, can be mounted to any place with access to network. The machine can output the remote audio data stream as the audio signal and give a sound directly, with intelligent control of the host.
Features
● Adopt all-weather design and waterproof unit, applicable to indoors and outdoors, with long service life, high sensitivity (89±2dB), clear and bright sound.● With maximum sound pressure level of 103±2dB, and effective frequency range of 20Hz ~ 20kHz.
● Can be mounted to any place with access to network.
● Support 16bit digital audio stream decoding at a maximum sampling rate of 48kHz.
● With a built-in 40W digital amplifier, with low power consumption.
● Can play background music, emergency paging and alarm signals from the system host.
● Can control local output volume and local playing status.
● With waterproof structure, waterproof grade IPX6.
Index Items | Index Parameters | ||
Acoustic System | Drive Unit | 4＂× 4, 1＂×1 | |
Sensitivity (1m. 1W) | 93±2dB | ||
MAX. SPL. (1m) | 109±2dB | ||
Frequency Response | 140Hz-14kHz | ||
Rated Power (RMS) | 40W | ||
Amplifier System | NET Play Built-in Amplifier | Frequency Response | 20Hz-18kHz(±3dB) |
Distortion | ≤1 % | ||
SNR | ≥70dB | ||
Power Supply | AC220V/50Hz | ||
Package Dimensions (H×W×D mm) (2 pieces) | 700×310×190 | ||
Machine Dimensions (H×W×D mm) | 643×137×117 | ||
Gross Weight | 5.25kg | ||
Net Weight | 5.0kg | ||
