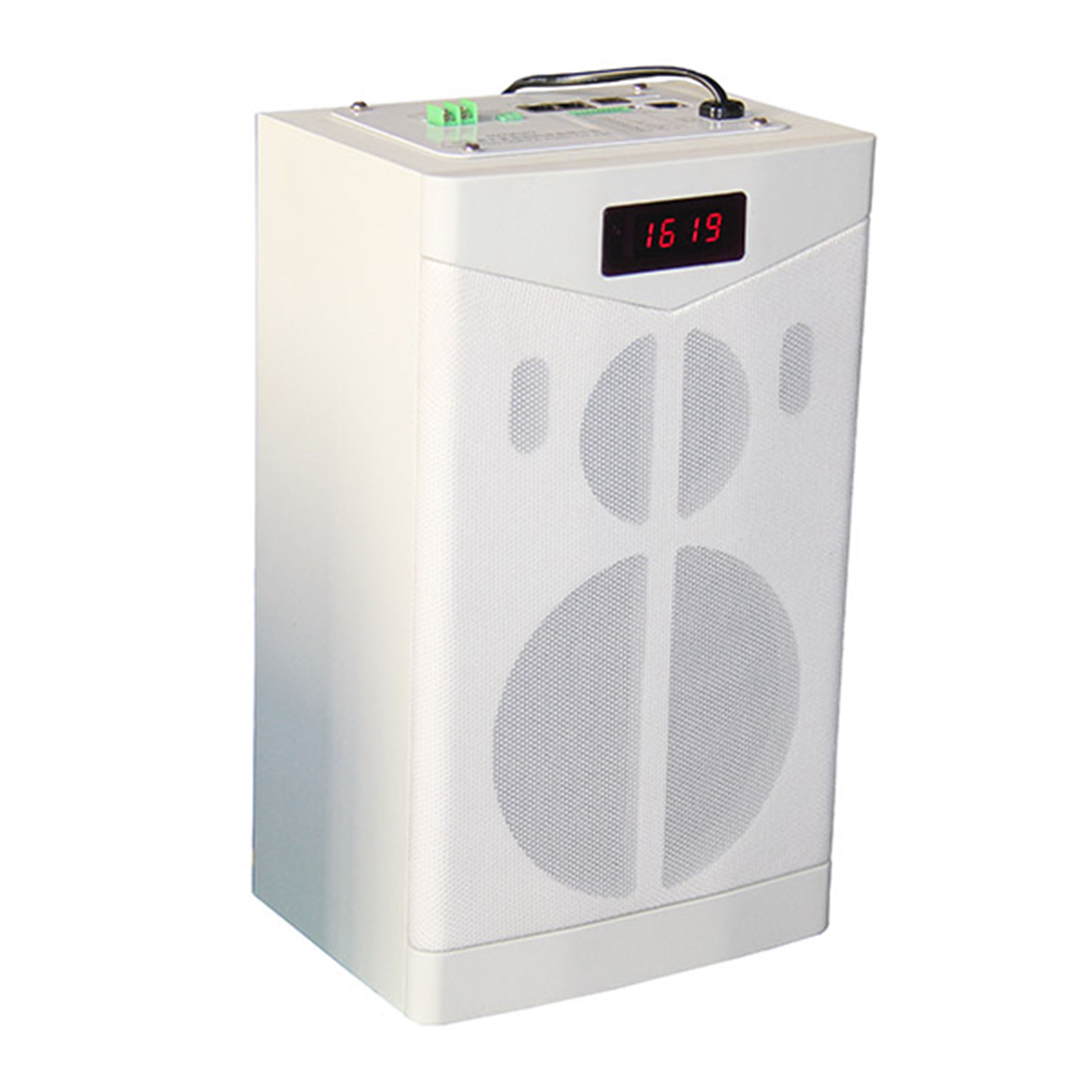

MAG6363 networked speaker is a networked all-digital analog-digital signal conversion processor with high fidelity speaker based on TCP/IP transmission protocol, so as to realize modern network display terminal with the overall design of the processor and sound box. Dual network redundancy design. It can be applied at any place with access to network. The remote audio data stream can output the audio signal through the machine, and directly send sound from the sound box with intelligent control of the host machine; MP3 program can be played when the network audio stream signal is not played. One channel of auxiliary audio input interface is used to connect other audio source device (such as DVD), and one channel of auxiliary audio output interface is used to connect other power amplifiers, so as to expand the power.
Features
● With integrated design of networked terminal processor and high fidelity speaker● With dual network interface, support working cross- net segment
● Can be coupled at any place with access to network
● With MP3 decoding play function.
● Support maximum 48kHz sampling rate 16bit digital audio bit stream decoding
● Built-in 2×15W high fidelity digital power amplifier with low power consumption settings
● Support background music playback, emergency paging, and alarm signal from the system host
● Controllable local output volume and local playing state
● Digital display of working state and information change
● It can be controlled by the infrared remote controller.
| Item | Specification | ||
| Model | MAG6363 | ||
| AUX IN | Input sensitivity | 300mV | |
| Frequency response | 25Hz-20kHz | ||
| Distortion | ≤0.3% | ||
| Signal-to-noise ratio | ≥75dB | ||
| AUX OUT | Output impedance | 1000mV | |
| Frequency response | 20Hz-20kHz | ||
| Distortion | ≤0．1% | ||
| Signal-to-noise ratio | ≥75dB | ||
| MICIn | Input sensitivity | 4mV | |
| Frequency response | 25Hz-16kHz | ||
| Distortion | ≤0.5% | ||
| Signal-to-noise ratio | ≥70dB | ||
| USB/SD/NET/MP3 | Frequency response | 25Hz-18kHz | |
| Distortion | ≤0.5% | ||
| Signal-to-noise ratio | ≥75dB | ||
| 100VAudio output | Output impedance | 30W | |
| Frequency response | 100Hz-15kHz | ||
| Distortion | ≤1% | ||
| Signal-to-noise ratio | ≥70dB | ||
| SD card capacity supported | 32GB | ||
| U disk capacity supported | 32GB | ||
| Power supply | AC180-240V/50Hz-60Hz | ||
| Screen | Digital screen | ||
| Weight | 5kg | ||
| Package size (L×W×H mm) | 385×380×260mm | ||
| Machine size (L×W×H mm) | 328×200×147mm | ||
