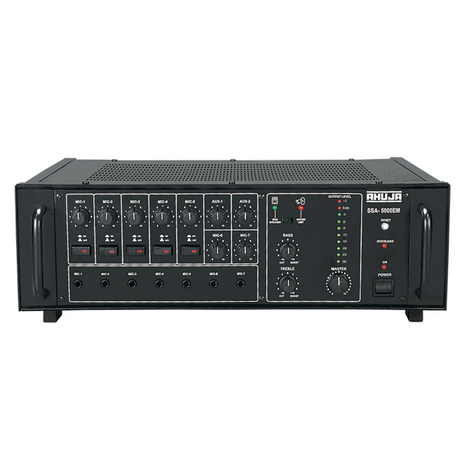

SSA-5000EM
500 WATTSHigh Wattage PA Mixer Amplifier
- 7 Mic & 2 Aux Inputs.
- Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
- Line Input for connecting the output from any external mixer or permitting SSA-5000EM to be used as a Booster Power Amplifier.
- Resettable circuit breaker for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
Power Output | 750W Max., 500W RMS at 10% THD, 450W RMS at 5% THD, 415W RMS at 2% THD |
Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
Input Channels | 7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/470 kΩ, 1 × Line 1V/50kΩ |
Frequency Response | 50-15,000Hz ±3dB |
Signal to Noise Ratio | 60dB |
Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
Outputs | Preamp 200mV/600Ω, Line 1V/1kΩ |
Speaker Outputs | 4Ω, 8Ω, 70V & 100V |
Power Supply | AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery) |
Power Consumption | AC: 1000VA DC: 8A |
Dimensions | W510 × H172 × D385 mm |
Weight | 26.7kg |
