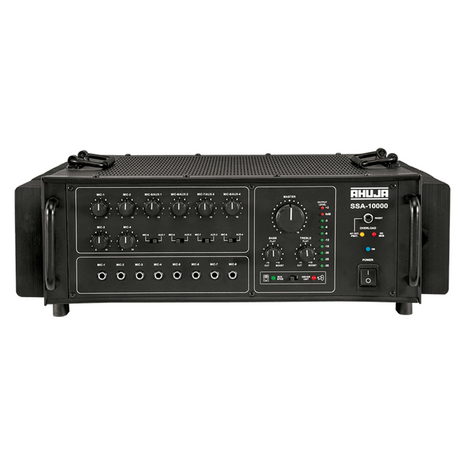

SSA-10000
1000 WATTSHigh Wattage PA Mixer Amplifier
- 8 Mic & 4 Aux Inputs.
- Aux-4 input is through RCA socket specially for connecting CD/DVD player.
- Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
- Line Input for connecting the output from any external mixer or permitting SSA-10000 to be used as a Booster Power Amplifier.
- Resettable circuit breaker & MCB at back for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
| Power Output | 1350W Max., 1000W RMS at 10% THD, 850W RMS at 5% THD, 800W RMS at 2% THD |
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 8 × Mic 0.8mV/4.7kΩ, 3 × Aux 100mV/50 kΩ, 1 × Aux 250mV/50 kΩ, 1 × Line 1V/50kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Outputs | Preamp 200mV/600Ω, Line 1V/1kΩ |
| Speaker Outputs | 2Ω, 4Ω, 70V & 100V |
| Power Supply | AC: 220-240V 50/60Hz DC: 48V (4×12V Car Battery) |
| Power Consumption | AC: 1600VA DC: 12A |
| Dimensions | W540 × H185 × D510 mm |
| Weight | 42.0kg |
