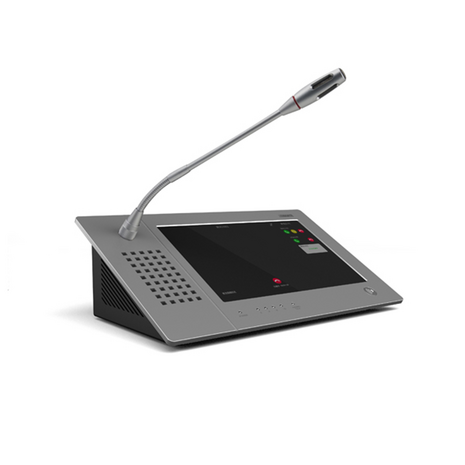

The network video intercom paging station is a network high-fidelity video intercom paging station based on TCP/IP, SIP, UDP and other transmission protocols. It is used with the company's intercom broadcast server and terminal. The internal docking externally supports the SIP protocol video intercom device. It can realize visual, intercom, paging and control operations. It has the characteristics of high stability of traditional paging stations, stable and reliable operation and low failure rate. Signal digital transmission design, intelligent control as the core.
Features
● 10.1 inch TFT true color LCD display + capacitive touch screen, support five-point touch● It can control up to 200 zones, with single selection, multiple selection, and one-click all selection.
● Multi-function operation such as intercom, broadcast, monitor, supervise, and music can be performed
● on zones, multiple zones, and groups.
● Only the zones and groupings of interest can be displayed as needed.
● You can view the status information of the zone and support up to 9 zones.
● Support terminal call reminder, custom ringtone, with microphone anti-howling suppression.
● Network interface that supports POE power supply.
● With multi-level level indication function, the paging sound pressure is more intuitive.
● Have to save each recording file, run the record and save it to the local and play and export.
● The microphone has no signal input within the set time and can be turned off automatically.
● The screen backlight illumination time and brightness are adjustable to achieve energy-saving operation.
● Has user password and rights management.
● Support language switching: Simplified Chinese and English
Model | DSP9312 | |
Audio OUT | Output Impedance | <47KΩ |
OutputAmplitude | 1.0±0.1V | |
Freq. Resp. | 80Hz-16kHz | |
Distortion | ≤1% | |
SNR | ≥71dB | |
Channel | Mono | |
MIC IN | InputSensitivity | 55±10mV |
Freq. Resp. | 300Hz~6KHz | |
DynamicRange | ≥12dB | |
Built-in Speaker | Power | 1W |
Freq. Resp. | 80Hz~8KHz | |
Distortion | ≤1% | |
SNR | ≥71dB | |
Network Protocol | TCP/IP,UDP,IGMP,RTP,SIP | |
PoE PowerSupply | IEEE 802.3af | |
Interface | InternetInterface AudioOutputInterface | RJ45 (10/100M) 3.5mm headphone socket |
Others | InputPower | 12VDC/2.5A |
WorkingTemperature | -20 - +50ºC | |
Dimensions(H×W×D mm) | 114×330×150 | |
Package Size | 165×370×230 | |
Net Weight | 1.7kg | |
Gross Weight | 3kg | |
