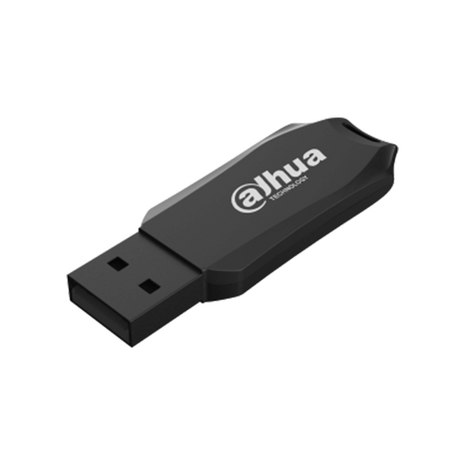

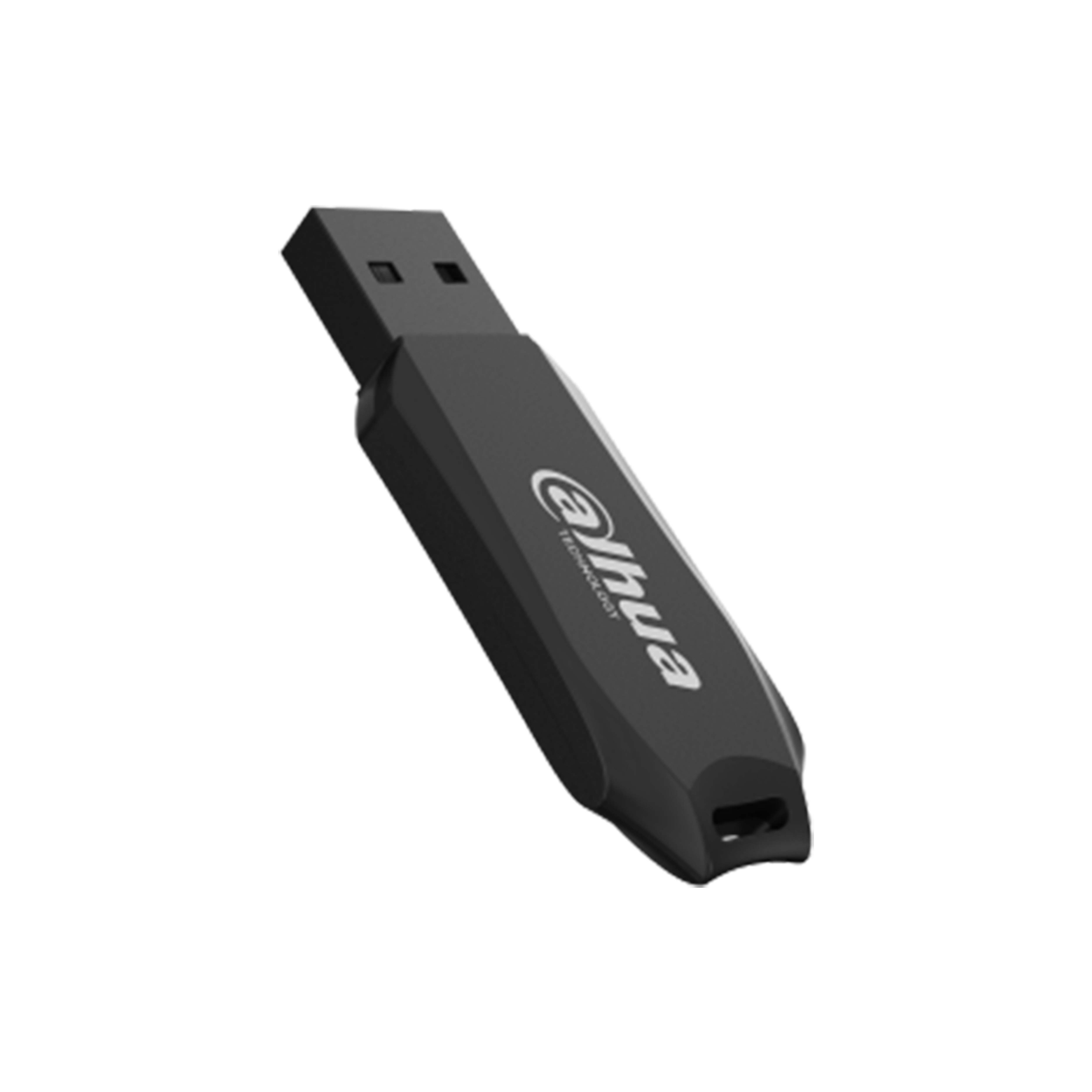

Dahua USB-U176-20-8G

Specification

Product Model

DHI-USB-U176-20-8G

DHI-USB-U176-20-16G

DHI-USB-U176-20-32G

DHI-USB-U176-20-64G

Interface

USB2.0

Capacity

8 GB

16 GB

32 GB

64 GB

Read Speed

8-25 MB/s

Write Speed

4-10 MB/s

File System

FAT32

FAT32

FAT32

exFAT

Operating System

Windows 7/8/10 or above
MacOS 10.5 or above

Linux 2.4.x or above
Android 7.0 or above

General

Product Dimensions

54 mm × 18.7 mm × 7.3 mm (2.13" × 0.74" × 0.29")

Packaging Dimensions

132 mm × 100 mm × 8.5 mm (5.20" × 3.94" × 0.33")

Operating Temperature

0 °C to +60 °C (32 °F to +140°F)

Storage Temperature

–20 °C to +70 °C (–4 °F to +158°F)

Net Weight

About 4.5 g

Gross Weight

About 16.5 g

Max Operating Voltage

5 V

Max Operating Current

90 mA

Warranty

5-year limited warranty

Reference Information

1. The capacity written on the product and package is nominal capacity.
2. 1 GB = 1 billion bytes, and the nominal capacity is not solely for data storage. According to internal testing, the transmission speed varies with devices, ports, environments, and other factors.
3. Warranty period or maximum write amount (TBW), whichever comes first.
(*The speed data comes from Dahua Memory Lab. The actual performance might differ depending on the device it is being used with. )
