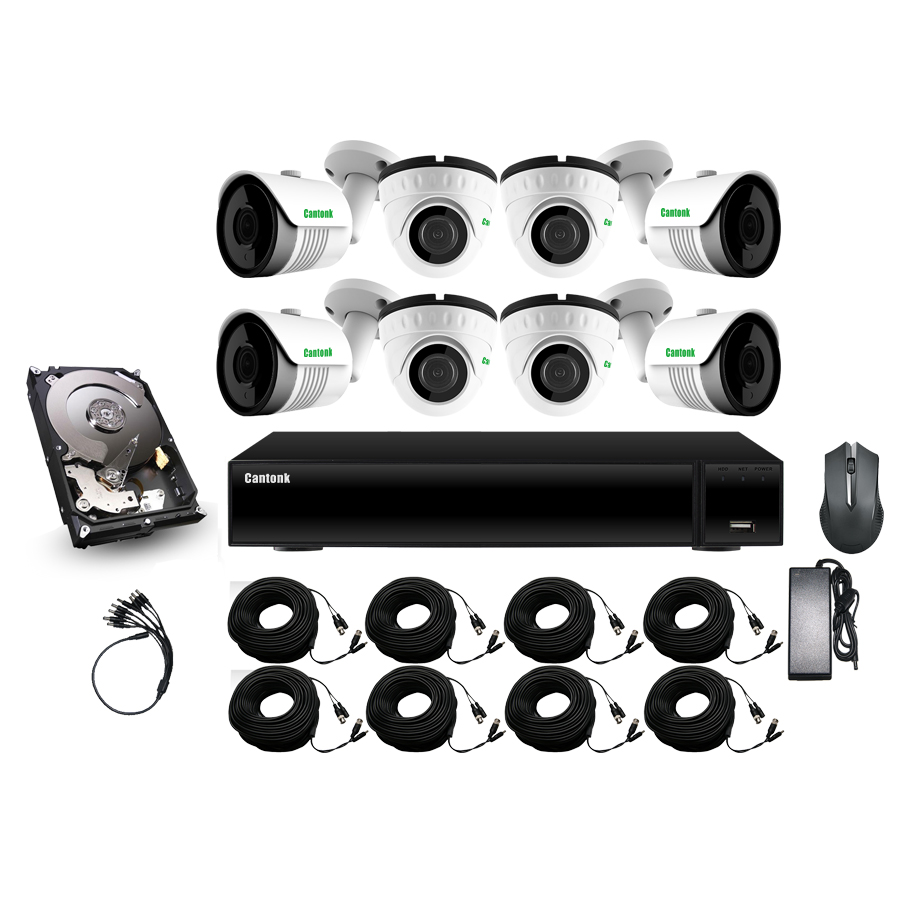

| Model NO. | XVRHCDA8218M500 | |||
| Package | ||||
| NVR | 1x XVRHCDA821KT-8 | |||
| Camera | DIY 1: 4 x KBR25AD500FK, 4 x KDSL20AD500FK DIY 2:8 x KBR25AD500FK DIY 3: 8 x KDSL20500FK | |||
| Cable | 8x 18m BNC+DC Cable, 1x (1 to 8CH power cable splitter) | |||
| Mouse | 1xUSB 2.0 Mouse | |||
| Hard Disk | 1x1TB Seagate hard disk ST1000VX005 | |||
| Adaptor | 1xDC12V/3A, 1xDC12V/2A | |||
| Weight | 10.3kg/SET | |||
| Camera Model | KBR25AD500FK | KDSL20AD500FK | ||
| Image Sensor | K03 | |||
| DSP | FH8538 | |||
| Image Resolution | 5MP /4MP /1080P / 960H | |||
| Effective Pixels | 2704H x 1950V | |||
| TV System | PAL/NTSC | |||
| Electronic Shutter | 1/25s~1/50,000s , 1/30s~1/60,000s | |||
| S/N Ratio | ≥50dB | |||
| Scanning System | Progressive Scan | |||
| Lens | ||||
| Focus Length | 3.6mm/F2.0 | |||
| Focus Control | Fixed | |||
| Lens Type | Fixed | |||
| Pixels | 5M Pixels | |||
| Auto Iris Support | NO | |||
| Night Vision | ||||
| Infrared LED | 42µ x 2PCS | 14µ x 18PCS | ||
| Infrared Distance | 30M | 20M | ||
| IR Status | Under 10 Lux by CDS | |||
| IR Power On | CDS Auto Control | |||
| Camera Features | ||||
| Day/Night | YES | |||
| OSD Menu Language | YES | |||
| White Balance | AUTO / MANUAL | |||
| Gain Control | AUTO | |||
| Noise Reduction | 3DNR | |||
| Picture Adjustment | YES | |||
| DWDR | YES | |||
| OSD Support | YES | |||
| UTC | YES | |||
| General | ||||
| Housing | Metal | |||
| Bracket | NO | |||
| Dual Voltage | NO | |||
| IR Cut Filter | YES | |||
| Heater | NO | |||
| Operation Temperature | -10℃ ~ +50℃ RH95% Max | |||
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | |||
| Power Source | DC12V±10%, 500mA | |||
| Dimension | 157(W) x 70(H) x 66(D)mm | ￠94.5 x 76(H) mm | ||
| Weight | 650g | 450g | ||
| Model | XVRHCDA821KT-8 | |||
| System | ||||
| Main Processor | HI3521D | |||
| Operating System | Embedded LINUX | |||
| Video | ||||
| Input | Analog: 8*(TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H) Analog+Network: 6*Analog(1080P)+3*network(Max 8MP),4*Analog(1080P)+5*network(Max 8MP),2*Analog(1080P)+7*network(Max 8MP) Network: 16*8MP/5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤80M) | |||
| Input | 8CH BNC | |||
| Signal Type | Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network | |||
| Output | 1HD,1 VGA | |||
| Audio | ||||
| Input | 4 Channel, RCA | |||
| Two-way Audio | NO | |||
| Output | 1 Channel, RCA | |||
| Alarm | ||||
| Sensor Input | NO | |||
| Output | NO | |||
| Motion Detection | 4 Channel(max 9 Channel in pure network mode) | |||
| Trigger Events | Recording, Email, Screen tips, Buzzer | |||
| Email Alarm | Send Image to The Designated E-mail | |||
| PTZ | ||||
| Interface | RS485 | |||
| Protocol | Pelco-D, Pelco-P | |||
| Baud Rate | 110~921600 | |||
| Address | 0~255 | |||
| Display | ||||
| VGA | Resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz | |||
| HD | Resolution: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz | |||
| Display Split | 16 Channel/9 Channel/4 Channel / 1Channel | |||
| Privacy Masking | 1 Rectangular Zones (Each camera) | |||
| OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording | |||
| Recording | ||||
| Video Compression | H.265/H.264+/H.264 | |||
| Audio Compression | G.711u | |||
| Resolution | 5MP(2592×1944),5MP_LITE(1296×1944),4MP(2560×1440),4MP_LITE(1280×1440), 3MP(2048×1536),1080P(1920×1080),720P(1280×720),960H(P:960×576/N:960×480) | |||
| Video Quality | worst/worse/ordinary/well/best | |||
| Record Rate | Analog: PAL:5MP(2592×1944 8*6fps),5MP_LITE(1296×1944 8*10fps), 4MP(2560×1440 8*8fps),4MP_LITE(1280×1440 8*15fps),3MP(2048×1536 8*9fps), 1080P(1920x1080 8*15fps),720P(1280×720 8*25fps), 960H(960×576 8*25fps) NTSC:5MP(2592×1944 8*6fps),5MP_LITE(1296×1944 8*10fps), 4MP(2560×1440 8*8fps),4MP_LITE(1280×1440 8*15fps),3MP(2048×1536 8*9fps), 1080P(1920x1080 8*15fps),720P(1280×720 8*30fps), 960H(960×480 8*30fps) Pure IP(H.265): PAL :4k@8x25fps, 5MP@12x25fps,4MP@16x25fps, 3MP@16x25fps, 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps NTSC:4k@8x30fps, 5MP@12x30fps,4MP@16x30fps, 3MP@16x30fps, 1080P@16x30fps, 960P@16x30fps, 720P@16x30fps, D1@16x30fps | |||
| Record Mode | Manual\Timer\Motion Detection | |||
| Playback & Backup | ||||
| Decode Capability | 4CH 1080P@30fps | |||
| Sync Playback | Pure Analog: 8CH 5M@6fps, 8CH 4M@7fps, 8CH 3M@9fps, 8CH 1080P@15fps Mix Mode: 4CH 5M@6fps, 4CH 4M@7fps, 4CH 3M@9fps, 4CH 1080P@15fps, 1CH 8MP 30fps, 2CH 5MP 30fps, 2CH 4MP fps, 2CH 3MP@30fps Pure IPC: 1CH 4K@30fps, 2CH 5MP@30fps, 3CH 4MP@30fps, 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps | |||
| Remote Playback | 4 Channel / 1Channel | |||
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection | |||
| Playback Functions | Play, Pause, Stop, Fast play, Rewind | |||
| Smart Phone Playback | 4 Channel | |||
| Backup Mode | USB Device/Network | |||
| Network | ||||
| Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface | |||
| Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP | |||
| DDNS | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES | |||
| Web Browser | IE8-11, Google Chrome (IE Tab), Firefox (IE Tab) | |||
| CMS Software | Support Windows 7/Windows 8/Windows 10 | |||
| Extra Stream | D1/CIF/(1~25fps) | |||
| Smart Phone | iPhone, ipad, Android ,Android pad | |||
| Hard Disk Driver | ||||
| Interface Type | 1 SATA Interface | |||
| Capacity | 2.5"/3.5" SATA, Up to 6TB | |||
| General | ||||
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek | |||
| UTC Control | YES | |||
| USB Interface | 2 USB 2.0 Interfaces | |||
| Power consumption | DC 12V ≤6W (Without Hard Disk) | |||
| Working Environment | -10~55℃/10~90% | |||
| Dimension (W×D×H) | 260*215*43(mm) | |||
| Weight | 2kg (Without HDD) | |||
