Cantonk XVRHCDA4202M500

Brand:
Call For Price
FEATURES:
Model NO. XVRHCDA4202M500 Package NVR 1x XVRHCDA420KT-2 Camera DIY 1: 1 x KBR25AD500FK, 1 x KDSL20AD500FK DIY 2:2 x KBR25AD500FK DIY 3: 2 x KDSL20500FK Cable 2x 18m BNC+DC Cable, 1x (1 to 4CH power cable splitter) Mouse 1xUSB 2.0 Mouse Hard Disk 1x1TB Seagate hard disk...
In Stock
Model NO.XVRHCDA4202M500

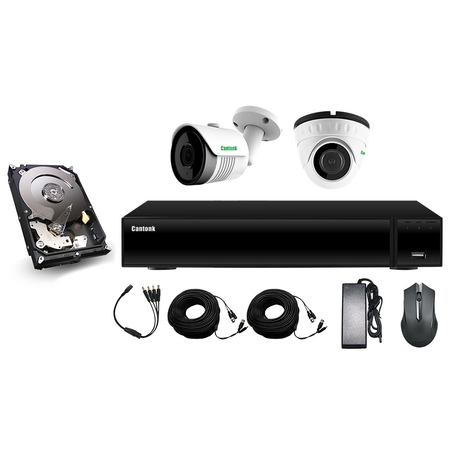

Package
NVR1x XVRHCDA420KT-2
CameraDIY 1: 1 x KBR25AD500FK, 1 x KDSL20AD500FK DIY 2:2 x KBR25AD500FK
DIY 3: 2 x KDSL20500FK
Cable2x 18m BNC+DC Cable, 1x (1 to 4CH power cable splitter)
Mouse1xUSB 2.0 Mouse
Hard Disk1x1TB Seagate hard disk ST1000VX005
Adaptor1xDC12V/3A
Weight5.3kg/SET
Camera ModelKBR25AD500FKKDSL20AD500FK
Image SensorK03
DSPFH8538
Image Resolution5MP /4MP /1080P / 960H
Effective Pixels2704H x 1950V
TV SystemPAL/NTSC
Electronic Shutter1/25s~1/50,000s , 1/30s~1/60,000s
S/N Ratio≥50dB
Scanning SystemProgressive Scan
Lens
Focus Length3.6mm/F2.0
Focus ControlFixed
Lens TypeFixed
Pixels5M Pixels
Auto Iris SupportNO
Night Vision
Infrared LED42µ x 2PCS14µ x 18PCS
Infrared Distance30M20M
IR StatusUnder 10 Lux by CDS
IR Power OnCDS Auto Control
Camera Features
Day/NightYES
OSD Menu LanguageYES
White BalanceAUTO / MANUAL
Gain ControlAUTO
Noise Reduction3DNR
Picture AdjustmentYES
DWDRYES
OSD SupportYES
UTCYES
General
HousingMetal
BracketNO
Dual VoltageNO
IR Cut FilterYES
HeaterNO
Operation Temperature-10℃ ~ +50℃ RH95% Max
Storage Temperature-20℃ ~ +60℃ RH95% Max
Power SourceDC12V±10%, 500mA
Dimension157(W) x 70(H) x 66(D)mm￠94.5 x 76(H) mm
Weight650g450g
ModelXVRHCDA420KT-2
System
Main ProcessorHI3520DV400
Operating SystemEmbedded LINUX
Video
InputNormal Mode: Analog: 4*(TVI/AHD:8M; TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)
Analog+Network: 2*Analog(1080P)+7*network(MAX 5MP)
Lite Mode: Analog: 4*(AHD/TVI/CVI: 1080P/720P; Analog: 960H)
Analog+Network: 2*Analog(1080P)+7*network(MAX 5MP)
Network: 12*5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤48M)
Input4CH BNC
Signal TypeAnalog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output1HD,1 VGA
Audio
Input4 Channel, RCA
Two-way AudioNO
Output1 Channel, RCA
Alarm
Sensor InputNO
OutputNO
Motion Detection4 Channel(max 16 Channel in pure network mode)
Trigger EventsRecording, Email, Screen tips, Buzzer, Push notifications(motion detection)
Email AlarmSend Image to The Designated E-mail
PTZ
InterfaceRS485
ProtocolPelco-D, Pelco-P
Baud Rate110~921600
Address0~255
Display
VGAResolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
HDNormal Mode: Resolution:2560*1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
Lite Mode: Resolution: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split16 Channel/9 Channel/4 Channel / 1Channel
Privacy Masking3 Rectangular Zones (Each camera)
OSDCamera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video CompressionH.265/H.265+/H.264/H.264+
Audio CompressionG.711u
Resolution5MP(2592×1944),8MP_LITE(1920×2160),5MP_HALF(1296×1944),4MP(2560×1440),4MP_HALF(1280×1440),
3MP(2048×1536),1080P(1920×1080),720P(1280×720),960H(P:960×576/N:960×480)
Video Qualityworst/worse/ordinary/well/best
Record RateNormal Mode:
Analog: PAL:8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps), 5MP_HALF(1296×1944 4*10fps),
4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),3MP(2048×1536 4*9fps),
1080P(1920x1080 4*15fps),720P(1280×720 4*25fps), 960H(960×576 4*25fps)
NTSC:8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps),5MP_HALF(1296×1944 4*10fps),
4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),3MP(2048×1536 4*9fps),
1080P(1920x1080 4*15fps),720P(1280×720 4*25fps), 960H(960×480 4*25fps)
Lite Mode:
Analog: Half 1080P(960x1080 4*25fps),720P(1280×720 4*25fps), 960H(P:960×576 4*25fps/N:960×480 4*30fps)
Pure IP(H.265):
PAL: 5MP@8×25fps,4MP@12x25fps,3MP@12×25fps,1080P@12×25fps,960P@12×25fps,720P@12×25fps,D1@12×25fps
NTSC: 5MP@8×30fps,4MP@12×30fps,3MP@12×30fps,1080P@12×30fps, 960P@12×30fps, 720P@12×30fps, D1@12×30fps
Record ModeManual\Timer\Motion Detection
Playback & Backup
Decode Capability2CH 1080P@30fps
Sync PlaybackPure Analog: 4CH 5M@6fps, 4CH 4M@7fps, 4CH 3M@9fps, 4CH 1080p@15fps, 4CH 1080N@25fps
Mix Mode: 1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps, 3CH 1080p@15fps
Pure IPC: 1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
Remote Playback4 Channel / 1Channel
Search ModeALL, Channel, Manual, Time, Date, Motion Detection
Playback FunctionsPlay, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen
Smart Phone Playback4 Channel
Backup ModeUSB Device(with fomat FAT 32 )/Network
Network
Interface1 RJ45 10M/100M Adaptive Ethernet Interface
Network FunctionsTCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
DDNSDyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE
Web BrowserIE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS SoftwareSupport Windows 7/ Windows 8/Windows 10
Extra StreamCIF(1~25fps)
Smart PhoneiPhone, ipad, Android ,Android pad
Hard Disk Driver
Interface Type1 SATA Interface
Capacity1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
General
LanguageChinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
UTC ControlYES
USB Interface2 USB 2.0 Interfaces
Power consumptionDC 12V ≤6W (Without Hard Disk)
Working Environment-10~55℃/10~90%
Dimension (W×D×H)260*215*43(mm)
Weight2kg (Without HDD)
