| Model NO. | XVRCA4202P200 | |||

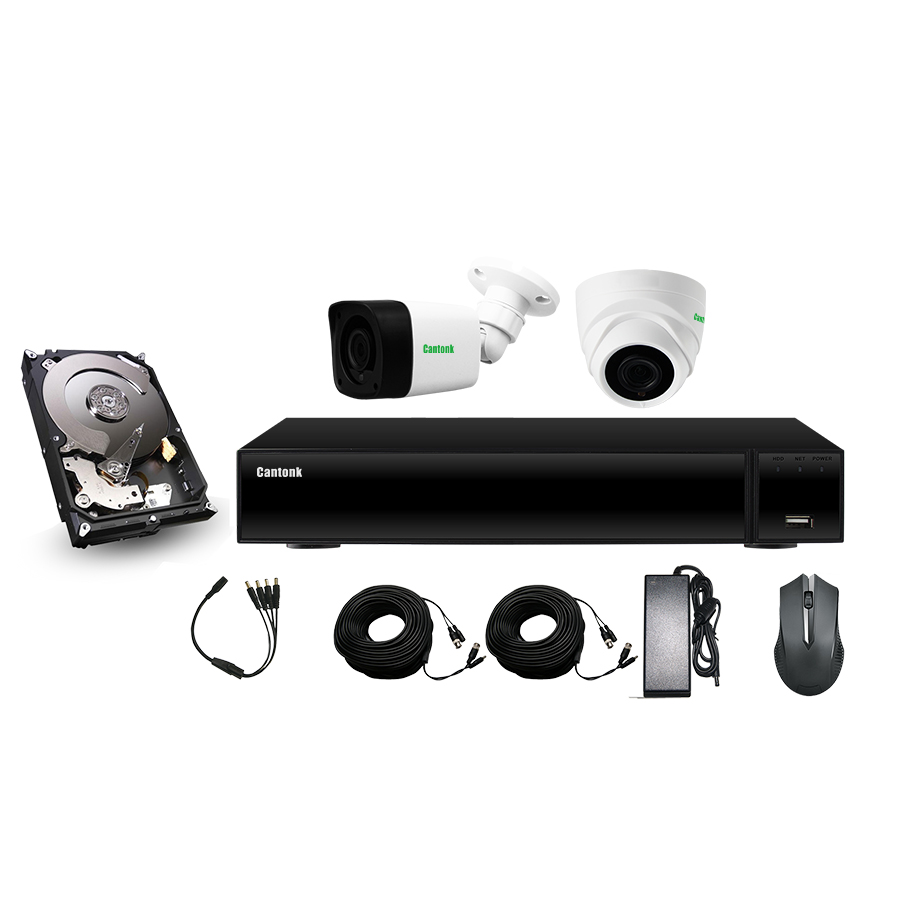

| Package | ||||
| NVR | 1x XVRCA420KT-2 | |||
| Camera | DIY 1: 1 x KBCP20AD200F, 1 x KDPL20AD200F DIY 2:2 x KBCP20AD200F DIY 3: 2 x KDPL20AD200F | |||
| Cable | 2x 18m BNC+DC Cable, 1x (1 to 4CH power cable splitter) | |||
| Mouse | 1xUSB 2.0 Mouse | |||
| Hard Disk | 1x1TB Seagate hard disk ST1000VX005 | |||
| Adaptor | 1xDC12V/3A | |||
| Weight | 5.3kg/SET | |||
| Camera Model | KBCP20AD200F | KDPL20AD200F | ||
| Image Sensor | F23 | |||
| DSP | FH8536H | |||
| Image Resolution | 1080P / 960H | |||
| Effective Pixels | 1920*1080 | |||
| TV System | PAL/NTSC | |||
| Electronic Shutter | 1/25s~1/50,000s , 1/30s~1/60,000s | |||
| S/N Ratio | ≥50dB | |||
| Scanning System | Progressive Scan | |||
| Lens | ||||
| Focus Length | 3.6mm/F2.0 | |||
| Focus Control | Fixed | |||
| Lens Type | Fixed | |||
| Pixels | 5M Pixels | |||
| Auto Iris Support | NO | |||
| Night Vision | ||||
| Infrared LED | 14µ x 18PCS | |||
| Infrared Distance | 20M | |||
| IR Status | Under 10 Lux by CDS | |||
| IR Power On | CDS Auto Control | |||
| Camera Features | ||||
| Day/Night | YES | |||
| OSD Menu Language | YES | |||
| White Balance | AUTO / MANUAL | |||
| Gain Control | AUTO | |||
| Noise Reduction | 3DNR | |||
| Picture Adjustment | YES | |||
| DWDR | YES | |||
| OSD Support | YES | |||
| UTC | YES | |||
| General | ||||
| Housing | Plastic | |||
| Bracket | NO | |||
| Dual Voltage | NO | |||
| IR Cut Filter | YES | |||
| Heater | NO | |||
| Operation Temperature | -10℃ ~ +50℃ RH95% Max | |||
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | |||
| Power Source | DC12V±10%, 500mA | |||
| Dimension | 160.8(W) x 62(H) x 62(D)mm | 90.5(W) x 80(H) x 80(D)mm | ||
| Weight | 380g | 300g | ||
| Model | XVRCA420KT-2 | |||
| System | ||||
| Main Processor | HI3520DV200 | |||
| Operating System | Embedded LINUX | |||
| Video | ||||
| Input | Analog: 4*1080N Analog+Network: 2*Analog(1080N)+4*network Network: 9*1080P/960P/720P(Total incoming bandwidth ≤46M) | |||
| Input | 4CH BNC | |||
| Signal Type | Analog/AHD/CVI/TVI 2.0/Network | |||
| Output | 1HD,1 VGA | |||
| Audio | ||||
| Input | 4 Channel, RCA | |||
| Two-way Audio | NO | |||
| Output | 1 Channel, RCA | |||
| Alarm | ||||
| Sensor Input | NO | |||
| Output | NO | |||
| Motion Detection | 4 Channel(max 9 Channel in pure network mode) | |||
| Trigger Events | Recording, Email, Screen tips, Buzzer | |||
| Email Alarm | Send Image to The Designated E-mail | |||
| PTZ | ||||
| Interface | RS485 | |||
| Protocol | Pelco-D, Pelco-P | |||
| Baud Rate | 110~921600 | |||
| Address | 0~255 | |||
| Display | ||||
| VGA | Resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz | |||
| HD | Resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz | |||
| Display Split | 9 Channel/4 Channel / 1Channel | |||
| Privacy Masking | 1 Rectangular Zones (Each camera) | |||
| OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording | |||
| Recording | ||||
| Video Compression | H.264 | |||
| Audio Compression | G.711u | |||
| Resolution | Half 1080P(960×1080);720P(1280×720);960H(P:960×576/N:960×480) | |||
| Video Quality | worst/worse/ordinary/well/best | |||
| Record Rate | Analog: Half 1080P(960x1080 4*25fps),720P(1280×720 4*25fps), 960H(P:960×576 4*25fps/N:960×480 4*30fps) Pure IP: PAL :1080P@9x25fps, 960P@9x25fps, 720P@9x25fps, D1@9x25fps NTSC:1080P@9x30fps, 960P@9x30fps, 720P@9x30fps, D1@9x30fps | |||
| Record Mode | Manual\Timer\Motion Detection | |||
| Playback & Backup | ||||
| Decode Capability | 2CH 1080P@30fps | |||
| Sync Playback | Pure Analog: 4CH 1080N@25fps Mixture mode: 1CH 1080P@30fps+1CH 1080N@25fps Pure Network: 2CH 1080P@30fps, 3CH 960P@30fps, 4CH 720P@30fps | |||
| Remote Playback | 1Channel | |||
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection | |||
| Playback Functions | Play, Pause, Stop, Fast play, Rewind | |||
| Smart Phone Playback | 4 Channel | |||
| Backup Mode | USB Device/Network | |||
| Network | ||||
| Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface | |||
| Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP | |||
| DDNS | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES | |||
| Web Browser | IE8-11, Google Chrome (IE Tab), Firefox (IE Tab) | |||
| CMS Software | Support Windows 7/Windows 8/Windows 10 | |||
| Extra Stream | D1/CIF/(1~25fps) | |||
| Smart Phone | iPhone, ipad, Android ,Android pad | |||
| Hard Disk Driver | ||||
| Interface Type | 1 SATA Interface | |||
| Capacity | 2.5"/3.5" SATA, Up to 6TB | |||
| General | ||||
| Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek | |||
| UTC Control | YES | |||
| USB Interface | 2 USB 2.0 Interfaces | |||
| Power consumption | DC 12V ≤6W (Without Hard Disk) | |||
| Working Environment | -10~55℃/10~90% | |||
| Dimension (W×D×H) | 260*215*43(mm) | |||
| Weight | 2kg (Without HDD) | |||
